Series:
21
Seal:
FKM
Series long:
21SB
Bore in mm:
5
Bore area in mm²:
20
Advantages:
One-hand operation. Small dimensions.
Working pressure:
35 bar maximum static working pressure with safety factor 4 to 1.
Working temperature:
-20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) 0°C up to +316°C (FFKM) depending on the medium.
Shut-Off:
Plug Double Shut-Off
Connection:

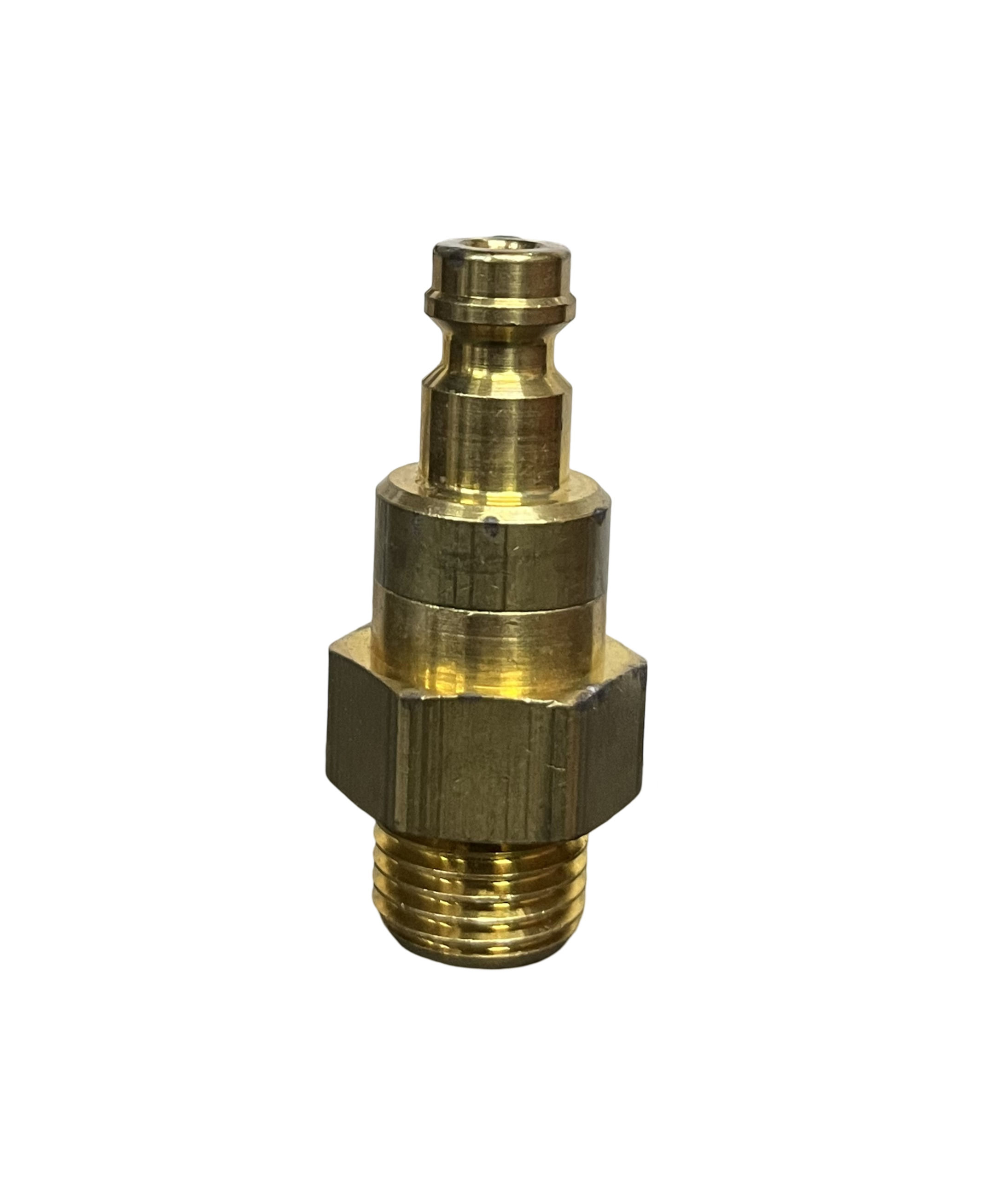

Male thread 1/4"
Connection description:
Male pipe thread of Whitworth form ISO 228 1/4"
Connection type:
Male thread
Material:
Brass
Material description:
Brass CuZn39Pb3 2.0401 (except sleeve)
Seal description:
Fluororubber
Surface:
blank finish
Material connection:
Brass
Material valve:
Brass
Material spring snap ring:
stainless steel AISI 301
Material seal:
Viton®
Weight in kg:
0,031
Self-venting coupling:
No
Safety locking system:
No
Single-hand operation:
Yes
Two-hand operation:
No
Ball locking:
No
Pin lock:
No
Ultra-FLO-valve:
No
Vacuum suitable:
Yes
Water-resistant:
No
Flat-sealing:
No
Suitable breath / respiratory protection:
No
Pressure eliminator:
No
Hydraulics:
No
Pneumatics:
Yes
Standard product:
No
Mould coupling:
No
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
